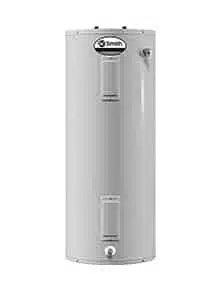

Residential Electric Water Heaters

  • Residential electric water heaters
  • EER certified capacities: 28 – 106 gallon
  • EER certified are models with 4.5 kW, rated 230 Volt only
  • Commercial grade incoloy sheathed elements with Ni-Chrome resistance wire embedded in magnesium oxide. Heating capacity 4.5 kW, rated 230 Volt, suitable for 220-240 Volt power supply
  • Surface mounted control thermostats with a temperature range from 43°C/110°F to maximum 71°C/160°F and hi-limit factory fixed setting at 83°C/180°F.
  • Thermostats are accurate to ± 2.5°C/5°F.
  • Diffuser dip tube carries incoming cold water from the top connection, to the bottom of the tank to minimize mixing with the hot water in the tank. Helps reduce lime and sediment buildup while maximizing hot water output. Made from long-lasting PEX cross-linked polymer.
  • Our Coregard™ magnesium anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods.
  • Durable, tamper-resistant brass drain valve
  • The internal pressure tank is constructed of heavy duty carbon steel.
  • Maximum working pressure is rated at 150psi/10bar. Test pressure per UL 174 std is 300psi/20bar.
  • Specially developed glass coating protects steel tank from corrosion and maximizes tank life.
  • Factory installed, side-mounted, CSA/ASME certified T&P safety relief valve is standard on all models.
  • All models are equipped with factory installed heat traps on the inlet and outlet connections to improve energy efficiency.
  • Code compliance meets the Federal Energy Efficiency Standards according to the 2004 edition of the National Appliance Energy Conservation Act (NAECA) of 1992 and the standby loss requirements of the U.S. Department of Energy and Current Edition of ASHRAE/IES 90.1.
  • Residential export water heaters comply with UL 174, GSO, PAI and IEC 60335-2-21.
  • Available models for Saudi are ECS 30 and 40 and ECT 52 – 120
